TDG 300 загвар
CNP

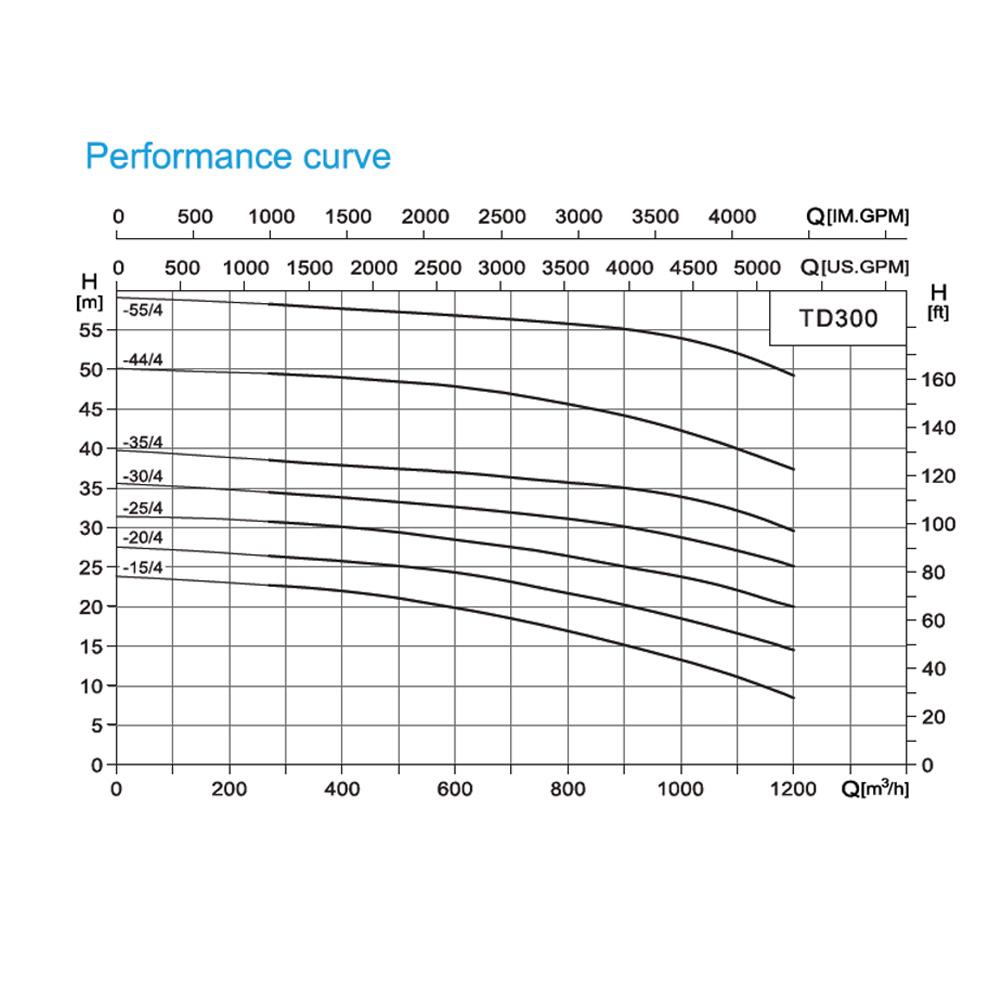

| Загвар | KW | Q (м3/цаг) | 270 | 360 | 450 | 630 | 750 | 900 | 1080 | 1200 |
|---|---|---|---|---|---|---|---|---|---|---|
| TD300-20G/4 | 75 | 26.4 | 26 | 25.5 | 24.1 | 22.4 | 20 | 17.1 | 14.5 | |
| TD300-25G/4 | 90 | 30.8 | 30.4 | 29.8 | 28.2 | 27.1 | 25 | 22.5 | 20 | |
| TD300-30G/4 | 110 | H (m) | 34.5 | 34 | 33.5 | 32.4 | 31.6 | 30 | 27.5 | 25 |
| TD300-35G/4 | 132 | 38.6 | 38.1 | 37.8 | 36.9 | 36 | 35 | 32.6 | 29.6 | |
| TD300-44G/4 | 160 | 49.5 | 49.2 | 48.8 | 47.6 | 46.3 | 44 | 40.5 | 37.5 | |
| TD300-55G/4 | 200 | 58.2 | 57.9 | 57.6 | 56.7 | 56.1 | 55 | 52.5 | 49.2 |

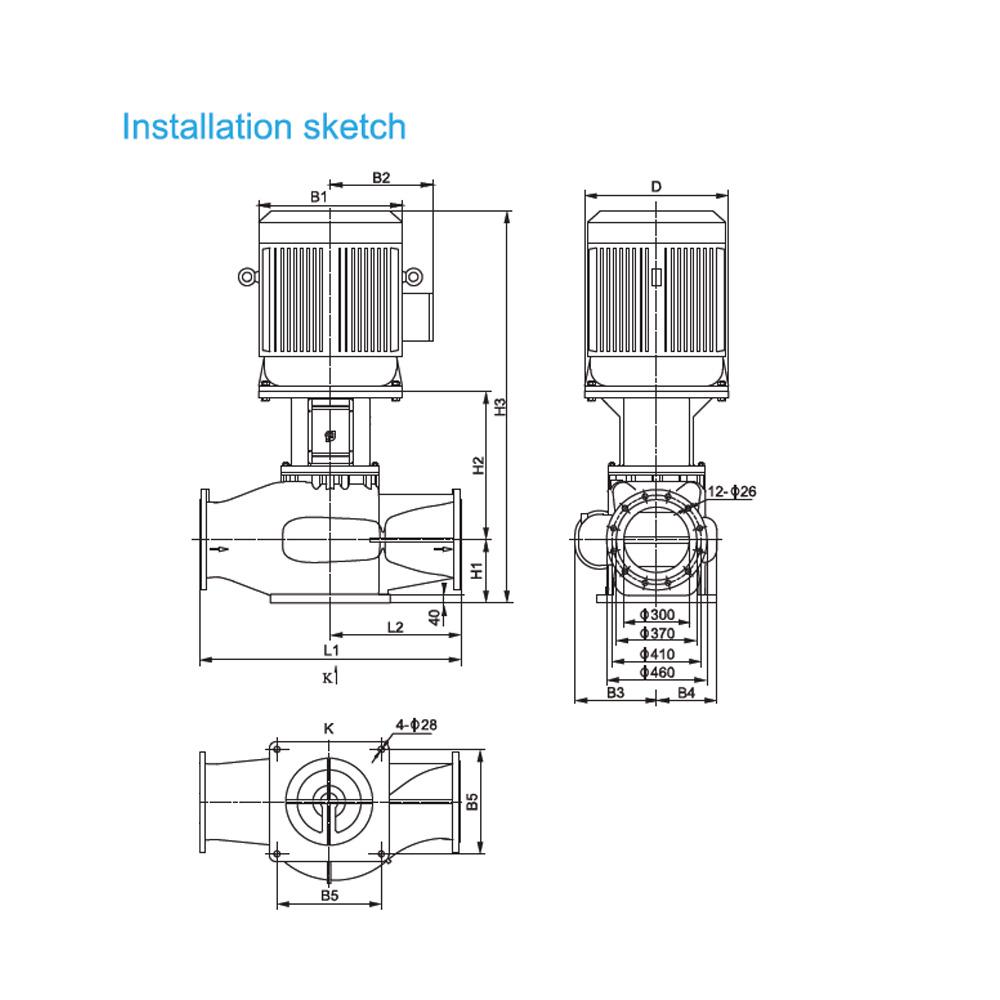

| Загвар | D | B1 | B2 | B3 | B4 | B5 | H1 | H2 | H3 | L1 | L2 | Жин (кг) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TD300-20G/4 | 550 | 550 | 400 | 345 | 250 | 440 | 290 | 649 | 1770 | 1200 | 600 | 1070 |
| TD300-25G/4 | 550 | 550 | 400 | 345 | 250 | 440 | 290 | 649 | 1820 | 1200 | 600 | 1120 |
| TD300-30G/4 | 660 | 625 | 555 | 345 | 250 | 440 | 290 | 679 | 2200 | 1200 | 600 | 1460 |
| TD300-35G/4 | 660 | 625 | 555 | 345 | 250 | 440 | 290 | 679 | 2150 | 1200 | 600 | 1540 |
| TD300-44G/4 | 660 | 625 | 550 | 380 | 295 | 480 | 290 | 702 | 2150 | 1200 | 600 | 1780 |
| TD300-55G/4 | 660 | 625 | 550 | 380 | 295 | 480 | 290 | 702 | 2150 | 1200 | 600 | 1900 |
