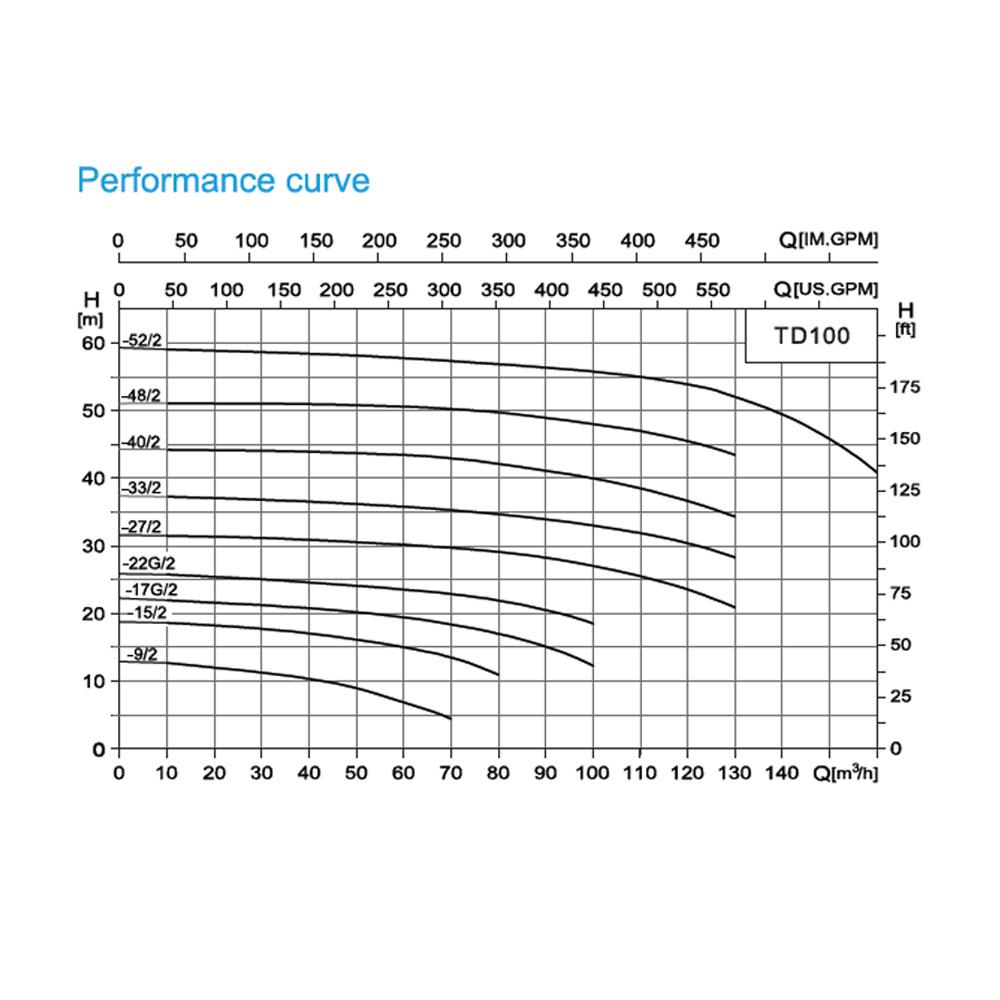

Загвар	KW	Q (м3/цаг)	10	20	30	40	50	60	70	80	90	100	110	120	130	145	160
TD100-15G/2	4		18.6	18.2	17.7	17.1	16.2	15	13.4	11
TD100-17G/2	5.5		21.9	21.6	21.2	20.8	20	19.4	18.4	17	15.1	12.3
TD100-22G/2	7.5		25.7	25.5	25	24.6	24.1	23.6	22.9	21.9	20.5	18.6
TD100-27G/2	11		31.5	31.3	31.1	30.9	30.7	30.3	29.8	29.2	28.2	27	25.5	23.6	20.8
TD100-33G/2	15	H (m)	37.1	37	36.8	36.6	36.2	35.8	35.3	34.7	33.9	33	31.7	30.1	27.9
TD100-40G/2	18.5		44.1	44.1	44	43.9	43.7	43.4	42.9	42.1	41.1	40	38.5	36.6	34.3
TD100-48G/2	22		51.2	51.1	51	51	50.8	50.6	50.2	49.7	48.9	48	47	45.5	43.5
TD100-52G/2	30		59.1	58.9	58.7	58.4	58.2	57.8	57.3	56.9	56.4	55.8	55	53.9	52	47.7	40.8

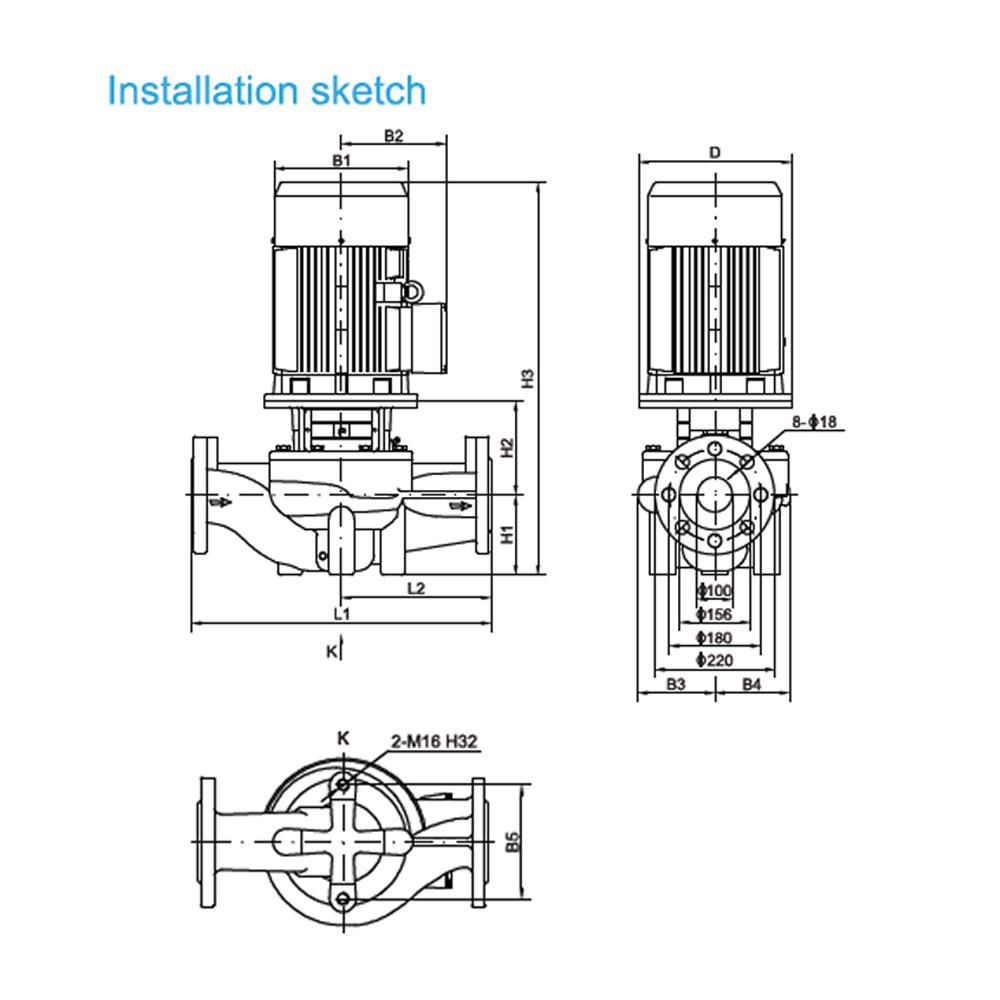

Загвар	D	B1	B2	B3	B4	B5	H1	H2	H3	L1	L2	Жин (кг)
TD100-15G/2	160	214	169	134	101	160	105	190	637	450	225	73
TD100-17G/2	200	257	190	146	118	144	120	199	702	450	225	96
TD100-22G/2	200	257	190	146	118	144	120	199	702	450	225	104
TD100-27G/2	350	314	261	147	123	144	140	260	900	550	275	187
TD100-33G/2	350	314	261	147	123	144	140	260	900	550	275	202
TD100-40G/2	350	314	261	181	152	230	140	270	954	550	275	220
TD100-48G/2	350	355	273	181	152	230	140	270	987	550	275	273
TD100-52G/2	400	397	314	181	152	230	140	270	1062	550	275	336
