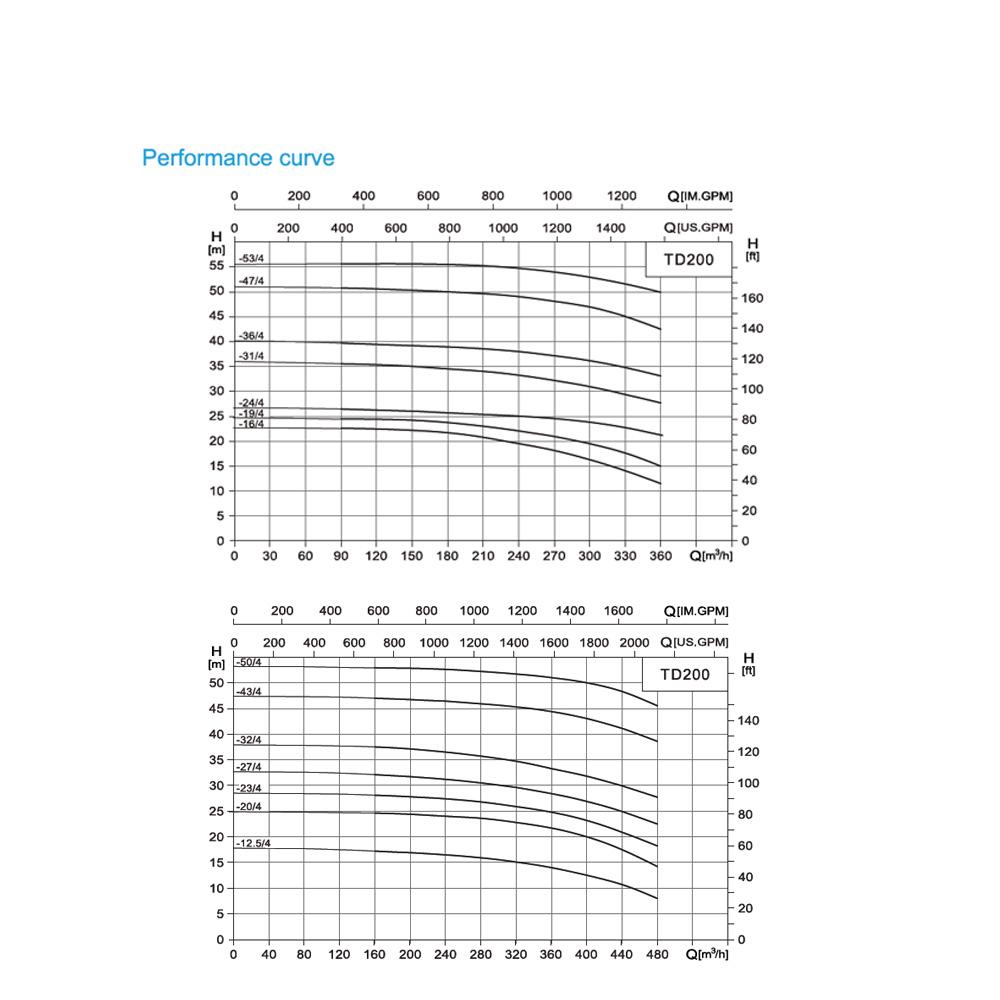

Загвар	KW	Q (м3/цаг)	90	120	150	160	180	200	210	240	280	300	320	330	360	400	440	480
TD200-20G/4	30					24.6		24.4		24	23.6		22.8		21.7	20	17.5	14.2
TD200-23G/4	37					28.1		27.8		27.4	26.8		25.9		24.8	23	20.9	18.2
TD200-27G/4	45					32.1		31.7		31.2	30.5		29.6		28.4	27	24.9	22.5
TD200-32G/4	55					37.5		37.1		36.5	35.7		34.7		33.3	32	29.9	27.7
TD200-43G/4	75					47		46.7		46.4	45.9		45.3		44.4	43	41.1	38.6
TD200-50G/4	90	H (m)				52.9		52.8		52.6	52.2		51.7		51	50	48.3	45.5
TD200-19G/4	22		24.4	24.3	24.2		23.7		23	22	20.9	19		17.6	15
TD200-24G/4	30		26.1	26	25.8		25.7		25.4	25.1	24.6	24		23.1	21.5
TD200-31G/4	37		35.4	35.3	35		34.5		33.9	33.2	32.2	31		29.3	27.6
TD200-36G/4	45		39.6	39.4	39.1		38.8		38.5	37.9	37	36		34.7	33
TD200-47G/4	55		50.6	50.5	50.2		49.8		49.5	48.9	48	47		44.9	42.4
TD200-53G/4	75		55.7	55.7	55.7		55.5		55.3	54.8	54	53		51.6	50

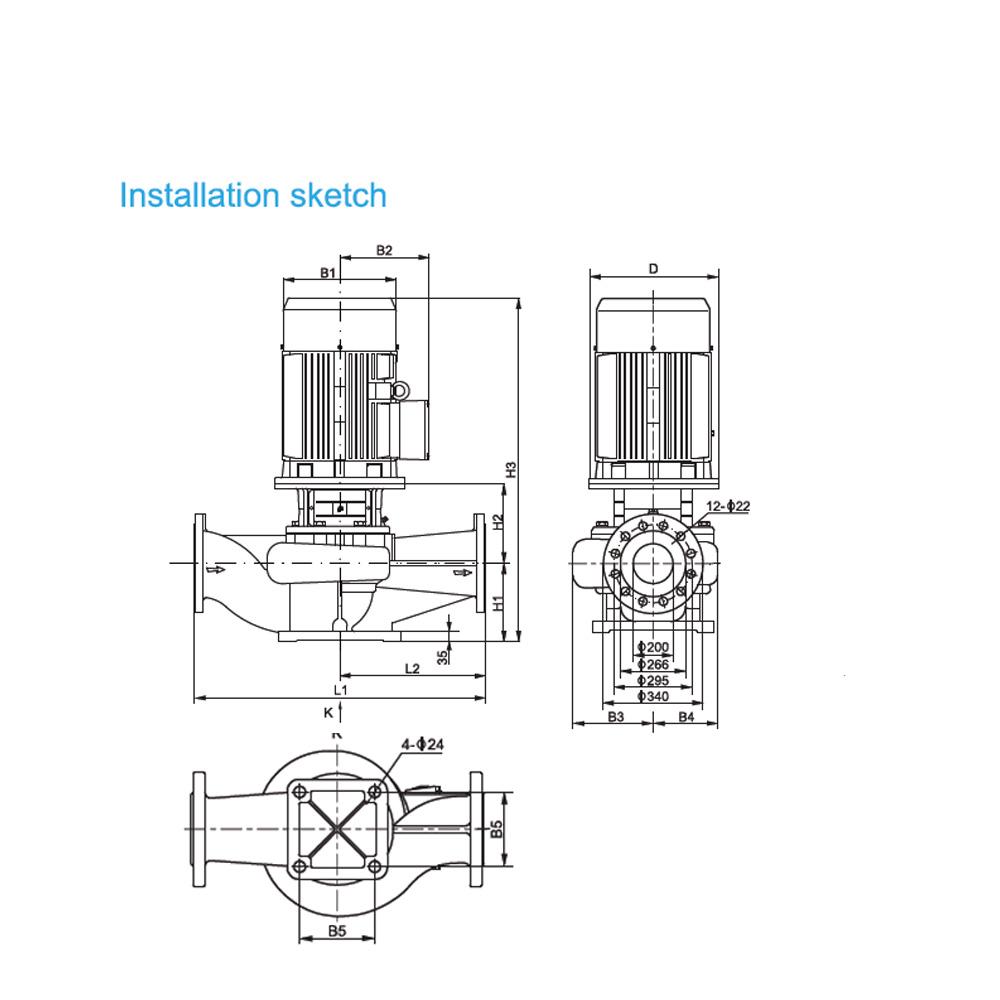

Загвар	D	B1	B2	B3	B4	B5	H1	H2	H3	L1	L2	Жин (кг)
TD200-20G/4	400	397	314	278	219	360	270	415	1334	1000	500	492
TD200-23G/4	450	445	334	303	252	360	270	445	1389	1100	550	602
TD200-27G/4	450	445	334	303	252	360	270	445	1412	1100	550	638
TD200-32G/4	550	484	367	303	252	360	270	445	1488	1100	550	710
TD200-43G/4	550	547	407	315	269	360	270	457	1556	1100	550	883
TD200-50G/4	550	547	407	315	269	360	270	457	1607	1100	550	975
TD200-19G/4	350	355	273	278	219	360	270	415	1305	1000	500	434
TD200-24G/4	400	397	314	303	252	360	270	415	1335	1000	550	537
TD200-31G/4	450	445	334	303	252	360	270	445	1395	1000	550	602
TD200-36G/4	450	445	334	303	252	360	270	445	1420	1000	550	648
TD200-47G/4	550	484	367	315	269	360	270	457	1517	1000	550	744
TD200-53G/4	550	547	407	315	269	360	270	457	1587	1000	550	877
