TDG 32 загвар
CNP
Ажлын даралт: 16 бар
Шингэний температур: -15 0С ~ 110 0С
Ажиллах орчны температур: 40 0С
Давуу тал:

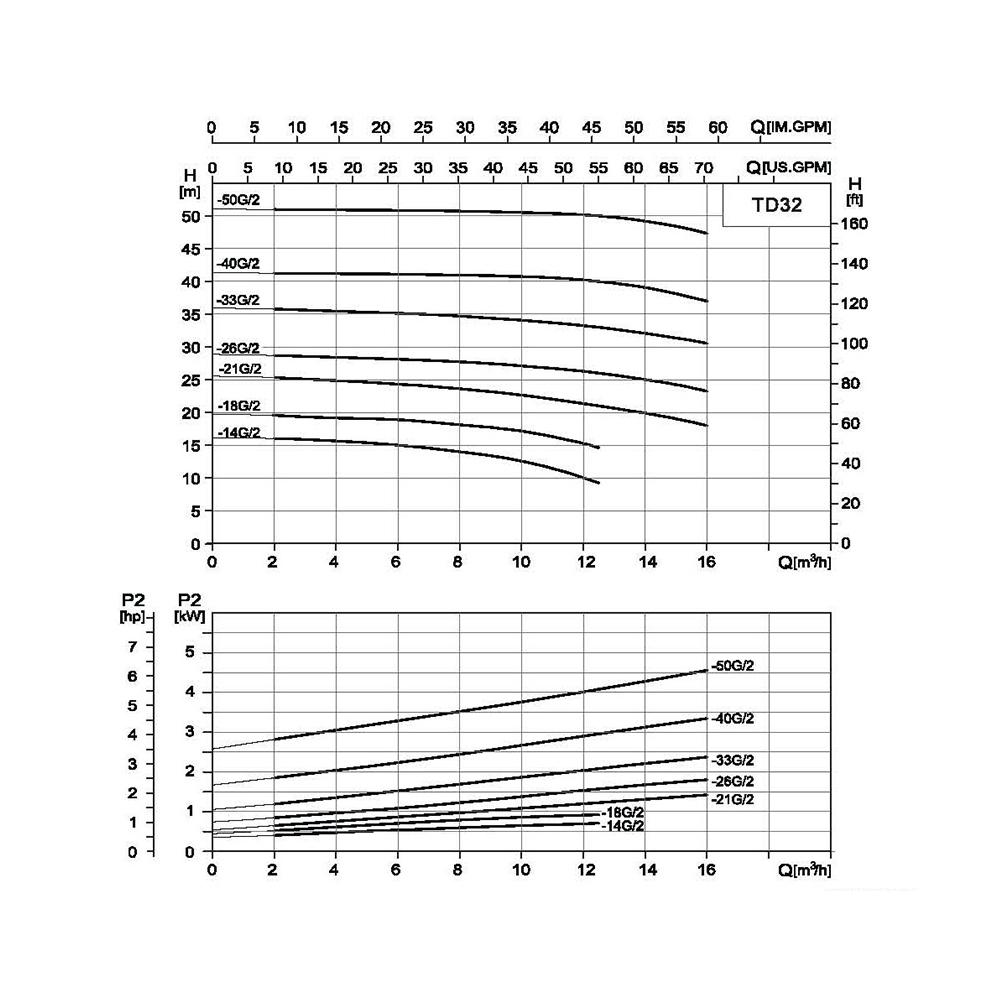

| Загвар | KW | 2 | 4 | 6 | 8 | 10 | 12.5 | 14 | 16 |
|---|---|---|---|---|---|---|---|---|---|
| TD32-10G/2 | 0.37 | 11 | 10.6 | 10 | 7.8 | 6 | |||
| TD32-14G/2 | 0.75 | 16 | 15.7 | 15.1 | 14 | 12.6 | 9.3 | ||
| TD32-18G/2 | 1.1 | 19.6 | 19.3 | 18.9 | 18 | 17.2 | 14.6 | ||
| TD32-21G/2 | 1.5 | H (m) | 25.3 | 24.9 | 24.3 | 23.6 | 22.6 | 21 | 19.9 |
| TD32-26G/2 | 2.2 | 28.7 | 28.4 | 28.1 | 27.7 | 27.1 | 26 | 25 | |
| TD32-33G/2 | 3 | 35.8 | 35.5 | 35.1 | 34.7 | 34.1 | 33 | 32.1 | |
| TD32-40G/2 | 4 | 41.3 | 41.2 | 41.1 | 41 | 40.7 | 40 | 39.1 | |
| TD32-50G/2 | 5.5 | 51 | 50.9 | 50.8 | 50.7 | 50.5 | 50 | 49.2 |

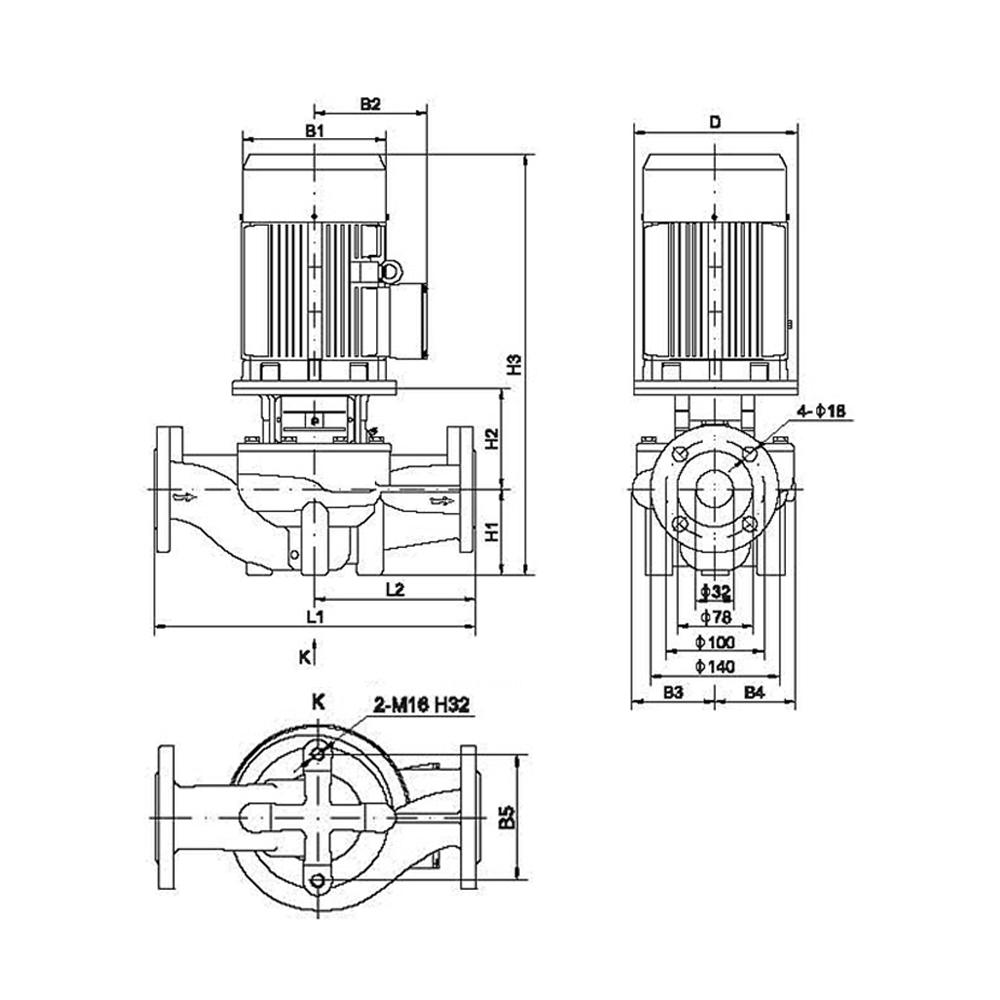

| Загвар | D | B1 | B2 | B3 | B4 | B5 | H1 | H2 | H3 | L1 | L2 | Жин (кг) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TD32-10G/2 | ||||||||||||
| TD32-14G/2 | 120 | 151 | 125 | 101 | 101 | 144 | 90 | 135 | 469 | 320 | 160 | 33 |
| TD32-18G/2 | 140 | 151 | 125 | 101 | 101 | 144 | 90 | 135 | 469 | 320 | 160 | 34 |
| TD32-21G/2 | 140 | 171 | 137 | 101 | 101 | 144 | 90 | 137 | 514 | 320 | 160 | 38 |
| TD32-26G/2 | 140 | 171 | 137 | 101 | 101 | 144 | 90 | 137 | 514 | 320 | 160 | 42 |
| TD32-33G/2 | 160 | 196 | 150 | 109 | 109 | 144 | 90 | 145 | 572 | 340 | 170 | 52 |
| TD32-40G/2 | 160 | 214 | 169 | 128 | 128 | 144 | 100 | 151 | 593 | 360 | 180 | 65 |
| TD32-50G/2 | 200 | 257 | 190 | 128 | 128 | 144 | 100 | 173 | 656 | 360 | 180 | 84 |
