TDG 40 загвар
CNP
Ажлын даралт: 16 бар
Шингэний температур: -15 0С ~ 110 0С
Ажиллах орчны температур: 40 0С

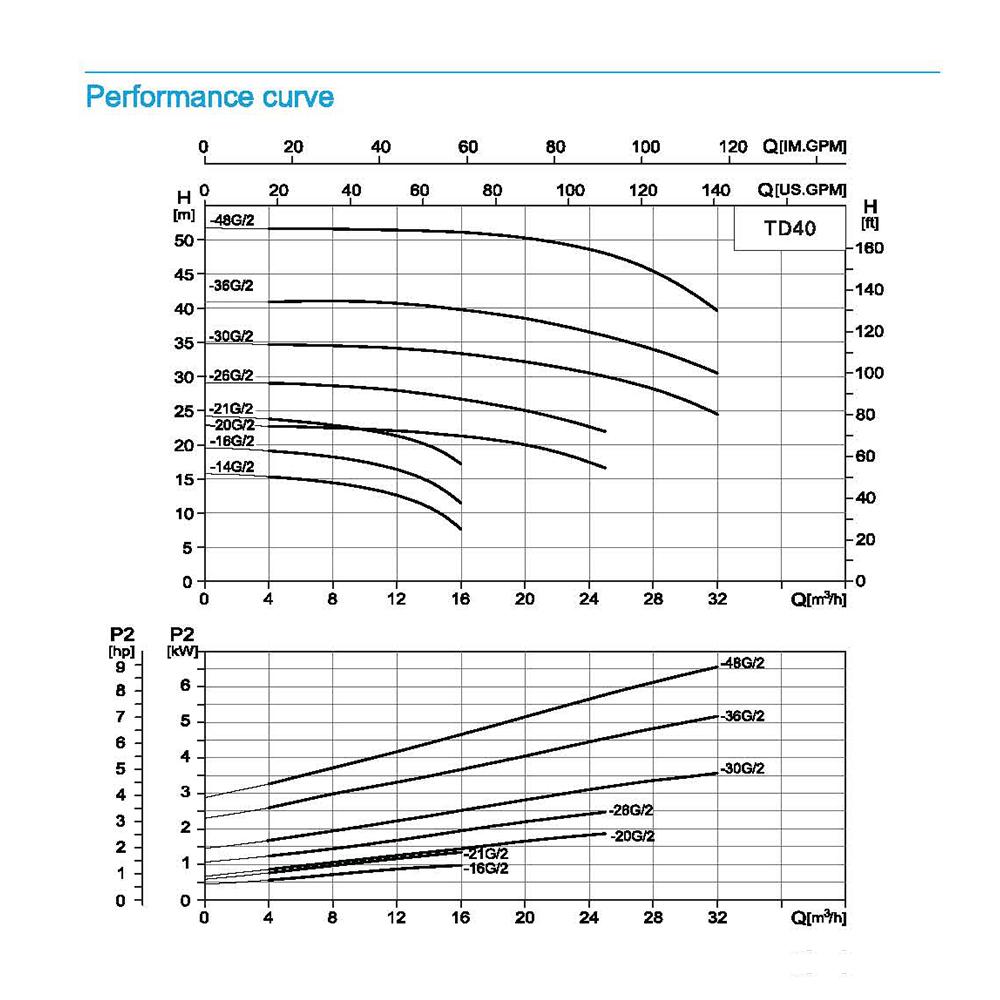

| Загвар | KW | Q (м3/цаг) | 4 | 8 | 12.5 | 16 | 20 | 25 | 28 | 32 |
|---|---|---|---|---|---|---|---|---|---|---|
| TD40-14G/2 | 0.75 | 15.4 | 14 | 10.2 | ||||||
| TD40-16G/2 | 1.1 | 19.1 | 18.2 | 16 | 11.4 | |||||
| TD40-21G/2 | 1.5 | 23.8 | 22.9 | 21 | 17.1 | |||||
| TD40-20G/2 | 2.2 | H (m) | 22.7 | 22.5 | 22 | 21.3 | 20 | 16.6 | ||
| TD40-26G/2 | 3 | 29 | 28.6 | 27.8 | 26.7 | 25 | 21.9 | |||
| TD40-30G/2 | 4 | 34.7 | 34.5 | 34.1 | 33.4 | 32.2 | 30 | 28.2 | 24.5 | |
| TD40-36G/2 | 5.5 | 40.9 | 41 | 40.7 | 39.8 | 38.5 | 36 | 34.1 | 30.5 | |
| TD40-48G/2 | 7.5 | 51.6 | 51.6 | 51.4 | 51.1 | 50.3 | 48 | 45.4 | 39.6 |

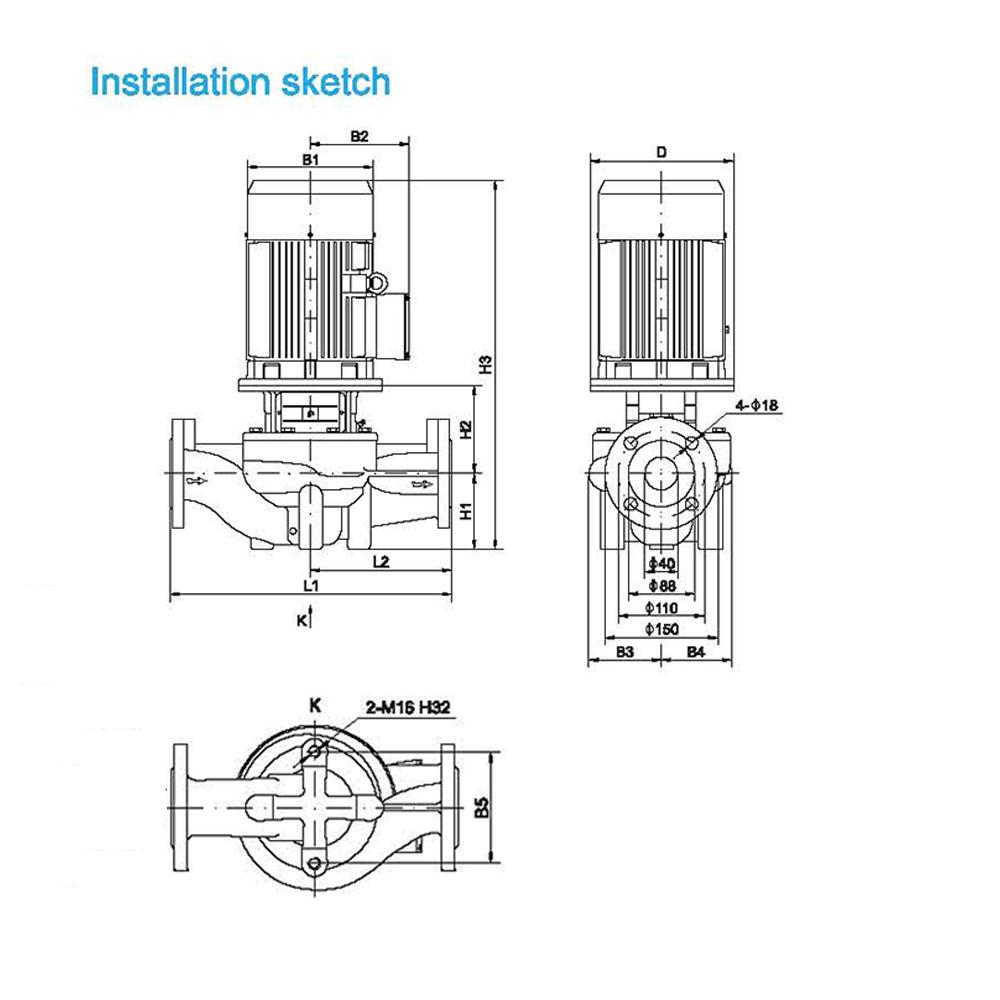

| Загвар | D | B1 | B2 | B3 | B4 | B5 | H1 | H2 | H3 | L1 | L2 | Жин (кг) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TD40-14G/2 | 122 | 151 | 125 | 98 | 95 | 120 | 68 | 139 | 451 | 320 | 160 | 31 |
| TD40-16G/2 | 122 | 151 | 125 | 98 | 95 | 120 | 68 | 139 | 451 | 320 | 160 | 32 |
| TD40-21G/2 | 140 | 171 | 137 | 98 | 95 | 120 | 68 | 149 | 504 | 320 | 160 | 38 |
| TD40-20G/2 | 140 | 171 | 137 | 105 | 95 | 144 | 85 | 144 | 516 | 320 | 160 | 43 |
| TD40-26G/2 | 160 | 196 | 150 | 116 | 109 | 144 | 85 | 156 | 578 | 340 | 170 | 54 |
| TD40-30G/2 | 160 | 214 | 169 | 116 | 109 | 144 | 85 | 156 | 583 | 340 | 170 | 62 |
| TD40-36G/2 | 200 | 257 | 190 | 133 | 128 | 144 | 90 | 181 | 654 | 380 | 190 | 85 |
| TD40-48G/2 | 200 | 257 | 190 | 133 | 128 | 144 | 90 | 181 | 654 | 380 | 190 | 94 |
