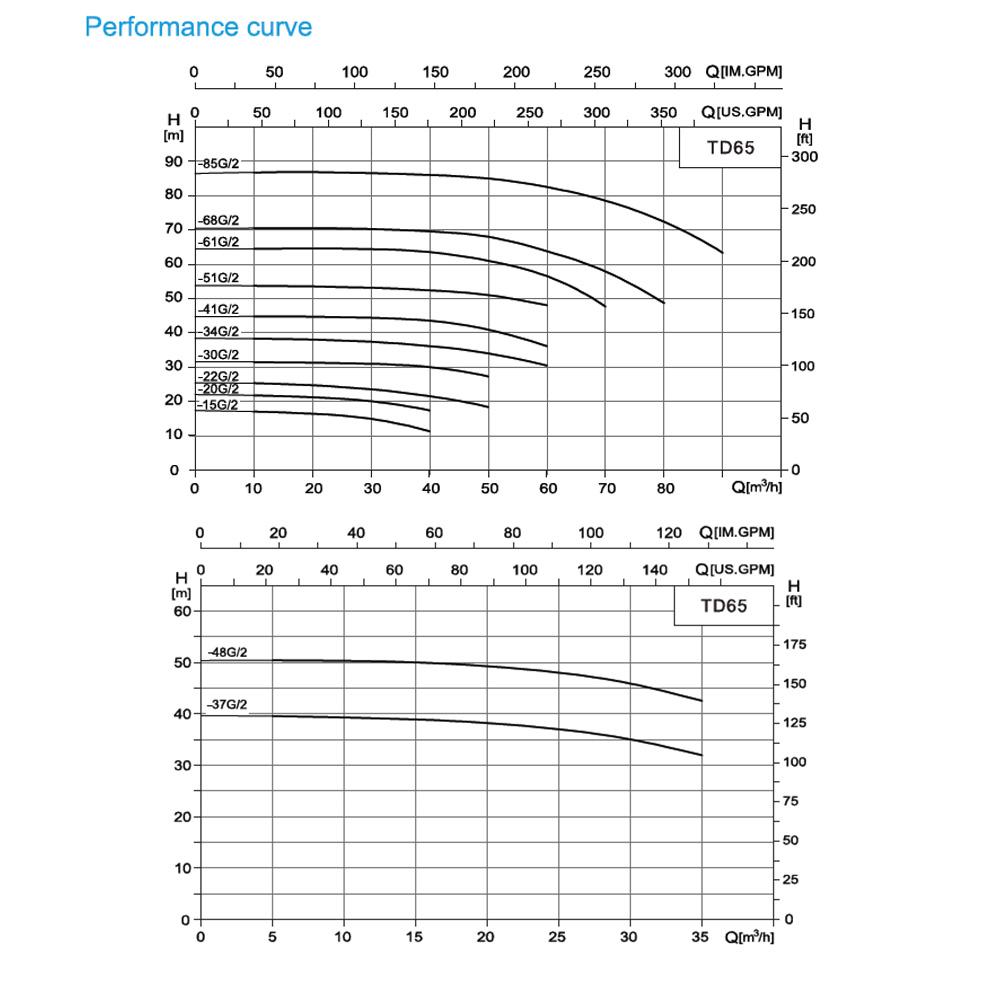

Загвар	KW	Q (м3/цаг)	5	10	15	20	25	30	35	40	50	60	70	80	90
TD65-15G/2	2.2			17.1		16.4		15		11.3
TD65-20G/2	3			21.8		21.2		20		17.4
TD65-22G/2	4			25.1		24.8		23.9		22	18.4
TD65-30G/2	5.5			31.5		31.3		31		30	27.3
TD65-34G/2	7.5			38.3		38		37.4		36.1	34	30.5
TD65-41G/2	11	H (m)		44.8		44.7		44.4		43.5	41	36.1
TD65-51G/2	15			53.7		53.5		53.1		52.4	51	48
TD65-61G/2	18.5			64.6		64.5		64.4		63.5	61	56.5	47.6
TD65-68G/2	22			70.5		70.5		70.3		69.6	68	63.8	58	48.6
TD65-85G/2	30			86.7		86.7		86.5		86	85	82.5	78.5	72.4	63.3
TD65-37G/2	5.5		39.6	39.3	39	38.2	37	35	32.1
TD65-48G/2	7.5		50.4	50.3	50	49.3	48	37.2	34.8

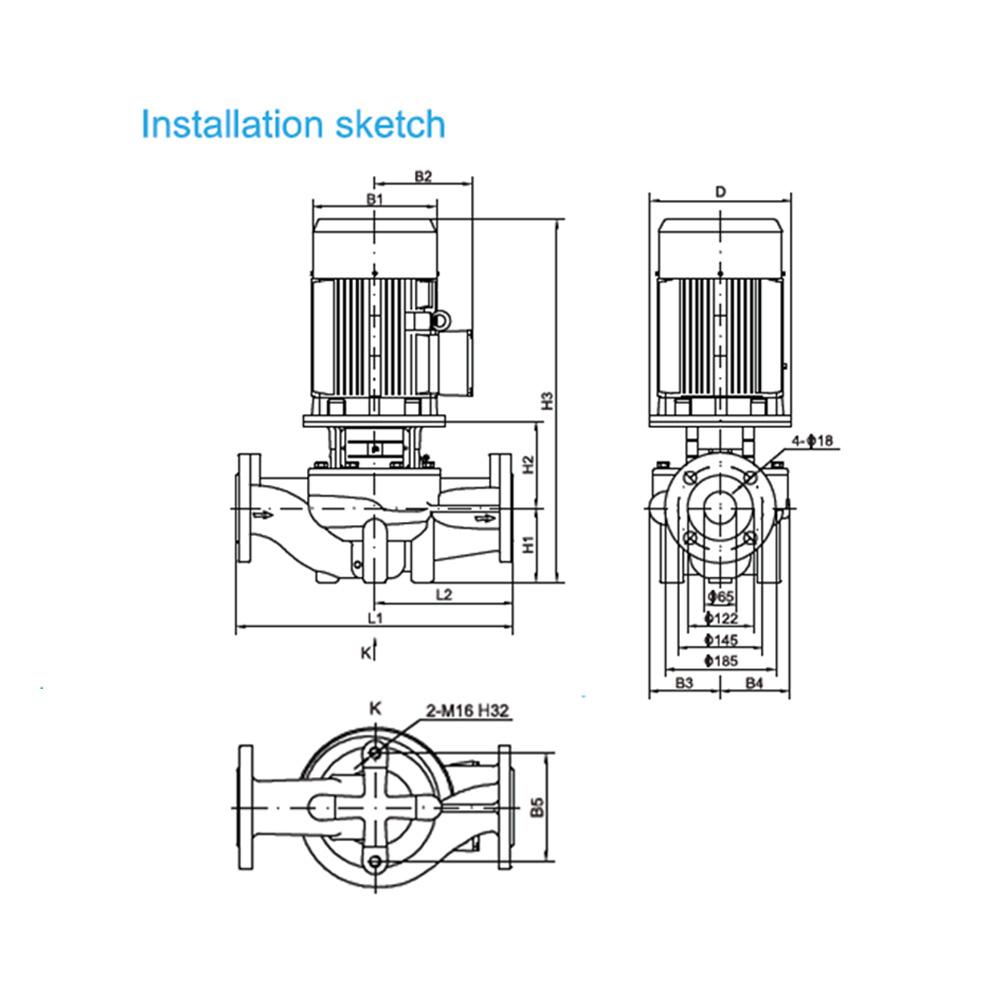

Загвар	D	B1	B2	B3	B4	B5	H1	H2	H3	L1	L2	Жин (кг)
TD65-15G/2	140	171	137	116	101	144	105	153	545	340	170	48
TD65-20G/2	160	196	150	116	101	144	105	163	605	340	170	57
TD65-22G/2	160	214	169	116	101	144	105	163	610	340	170	64
TD65-30G/2	200	257	190	131	115	144	105	194	682	360	180	85
TD65-34G/2	200	257	190	131	115	144	105	194	682	360	180	94
TD65-41G/2	350	314	261	148	138	144	105	234	839	400	200	173
TD65-51G/2	350	314	261	148	138	144	105	234	839	400	200	188
TD65-61G/2	350	314	261	174	162	160	125	228	897	475	238	208
TD65-68G/2	350	355	273	174	162	160	125	228	930	475	238	260
TD65-85G/2	400	397	314	174	162	160	125	231	1008	475	238	322
TD65-37G/2	200	257	190	128	128	144	105	180	668	400	200	90
TD65-48G/2	200	257	190	128	128	144	105	180	668	400	200	98
