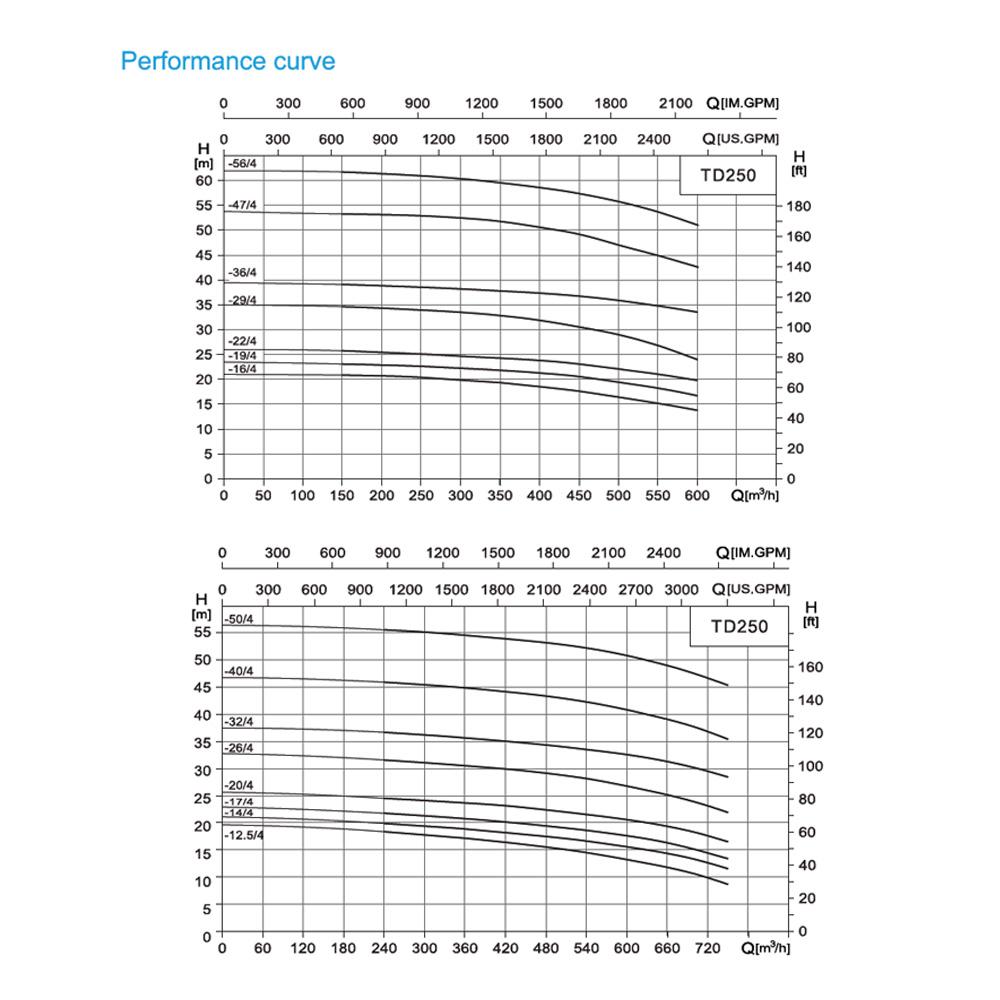

Загвар	KW	Q (м3/цаг)	150	200	240	250	300	350	360	400	420	450	480	500	540	550	600	630	660	720	750
TD250-19G/4	37		22.7	22.4		22.1	21.7	21.3		20.8		20.1		19		17.9	16.6
TD250-22G/4	45		25.7	25.3		25.1	24.7	24.3		23.8		23.1		22		21	19.7
TD250-29G/4	55		34.6	34.4		34	34.4	32.6		31.8		30.6		29		26.8	23.9
TD250-36G/4	75		39.1	38.8		38.5	38.2	37.8		37.3		36.8		36		34.3	32.5
TD250-47G/4	90		53.3	53.1		52.9	52.4	51.8		50.6		49.2		47		45	42.5
TD250-56G/4	110	H (m)	61.6	61.4		60.9	60.2	59.5		58.6		57.4		56		53.8	51
TD250-17G/4	45				21.8			21.3	20.8		20.1		19.4		18.6		17.6	17	16.3	14.4	13.4
TD250-20G/4	55				24.5			24.1	23.7		23.1		22.4		21.5		20.5	20	19.3	17.6	16.5
TD250-26G/4	75				31.7			31.1	30.6		29.9		29.1		28.2		26.8	26	25.2	23.1	21.9
TD250-32G/4	90				36.7			36.3	35.7		35.1		34.3		33.5		32.6	32	31.3	29.5	28.4
TD250-40G/4	110				46			45.5	44.9		44.2		43.4		42.3		40.8	40	39.1	36.8	35.5
TD250-50G/4	132				55.6			55.2	54.6		53.9		53.2		52.3		50.9	50	49	46.7	45.4

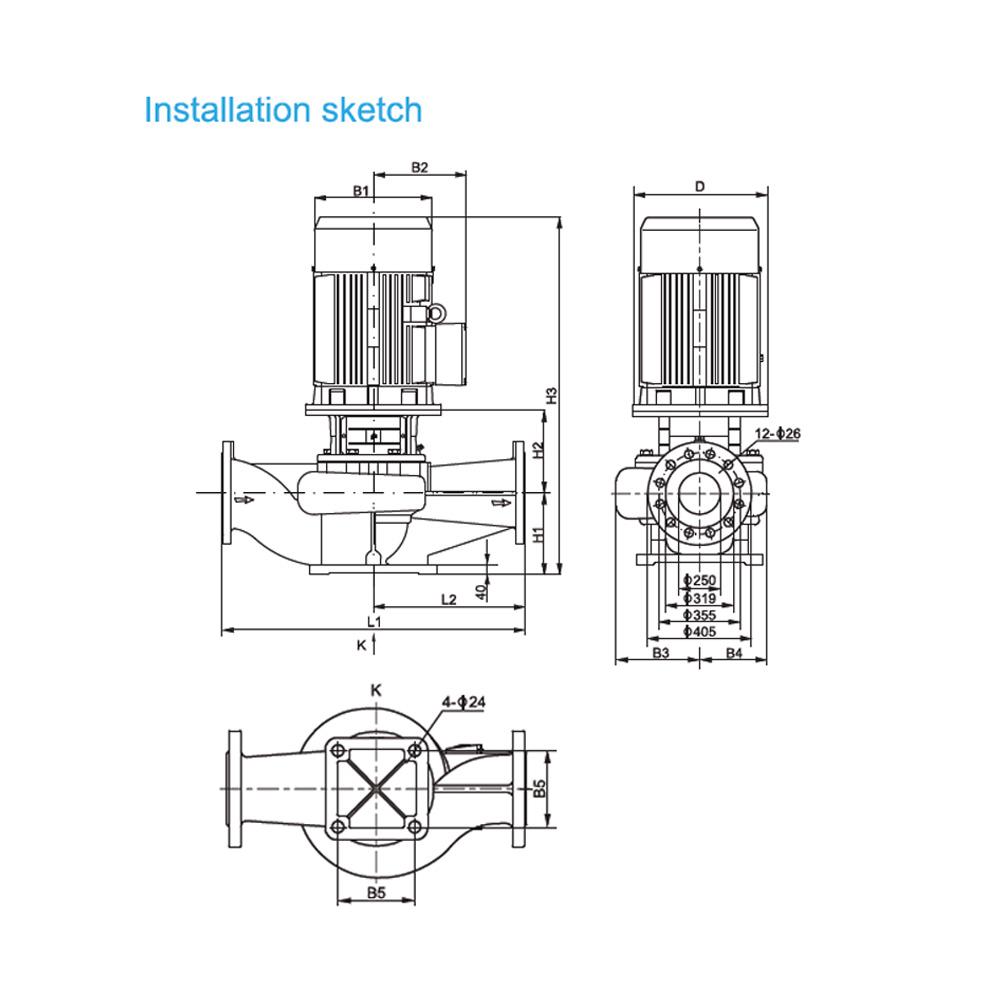

Загвар	D	B1	B2	B3	B4	B5	H1	H2	H3	L1	L2	Жин (кг)
TD250-19G/4	450	445	334	316	243	390	300	495	1492	1100	550	611
TD250-22G/4	550	445	334	316	243	390	300	495	1568	1100	550	647
TD250-29G/4	550	484	367	329	264	440	300	507	1636	1100	550	773
TD250-36G/4	550	547	407	329	264	440	300	507	1687	1100	550	909
TD250-47G/4	660	547	407	347	292	440	305	485	1670	1200	600	1030
TD250-56G/4	660	645	535	347	292	440	305	525	1990	1200	600	1469
TD250-17G/4	450	450	335	316	243	390	300	495	1492	1100	550	647
TD250-20G/4	550	490	365	316	243	390	300	495	1568	1100	550	720
TD250-26G/4	550	550	400	329	264	440	300	507	1636	1100	550	906
TD250-32G/4	550	550	400	329	264	440	300	507	1687	1100	550	997
TD250-40G/4	660	625	555	347	292	440	305	525	1840	1200	600	1386
TD250-50G/4	660	625	555	347	292	440	305	525	1990	1200	600	1469
