CDM200 загвар
CNP брэнд
-
Оролтын хүчдэл: 50Hz, 3×380V
-
Чадлын хүрээ: 1.5kW – 15kW
-
Гаралтын давтамж: 30Hz – 50Hz
-
Даралт тохируулга: 0.1 bar

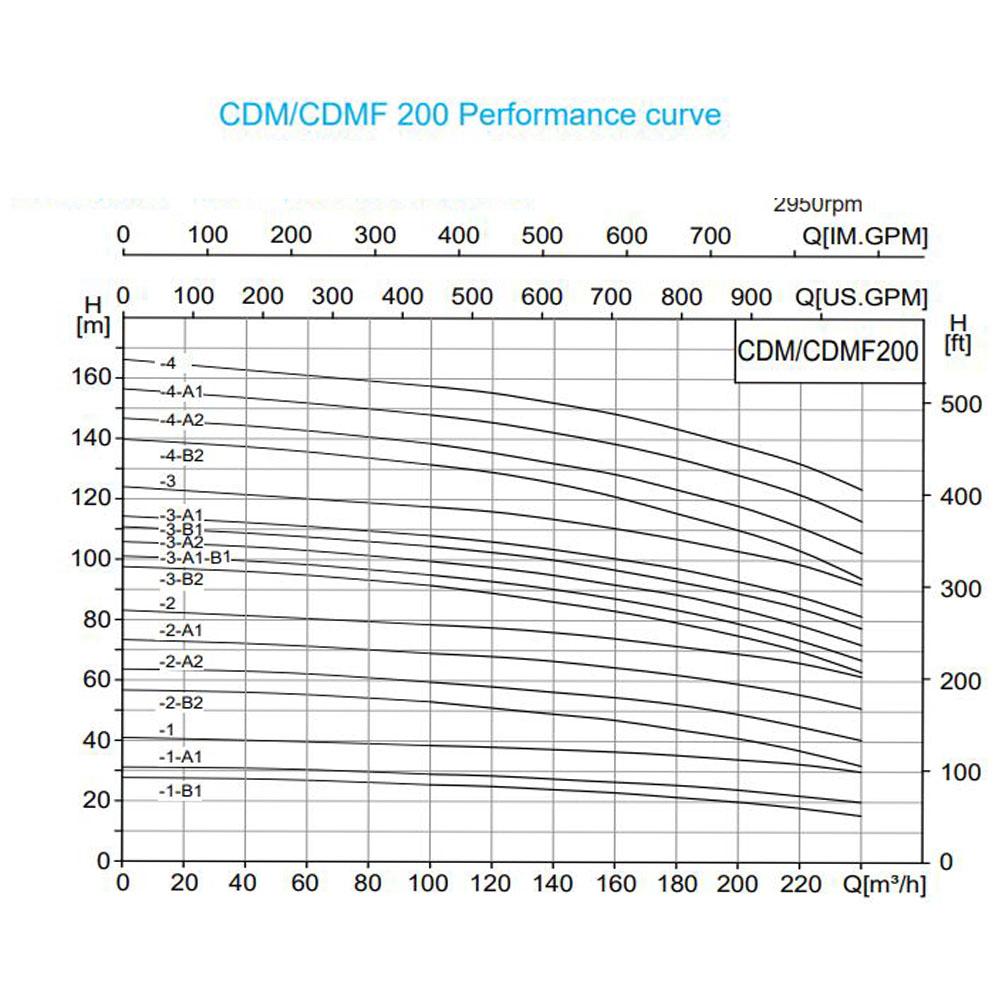

| Загвар | KW | Q(m3/h) | 0 | 100 | 120 | 140 | 160 | 180 | 200 | 220 | 240 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CDM 200-1 | 30 | H (m) | 40.5 | 38.5 | 38 | 37.5 | 36.5 | 35 | 34 | 32.5 | 30 |
| CDM 200-2-2B | 37 | 57 | 53 | 51 | 49 | 47 | 44 | 41 | 37 | 32 | |
| CDM 200-2-2A | 45 | 63 | 59.5 | 58 | 56 | 54 | 52.5 | 49 | 44.5 | 40.5 | |
| CDM 200-2 | 55 | 73 | 69 | 68 | 66 | 64 | 62 | 59 | 55.5 | 51 | |
| CDM 200-3-2A | 75 | 106 | 99.5 | 97.5 | 94.5 | 91.5 | 89 | 84 | 78.5 | 72 | |
| CDM 200-3-B | 75 | 111 | 104.5 | 102.5 | 100 | 97 | 93 | 89 | 84.5 | 77.5 | |
| CDM 200-3 | 90 | 123 | 117.5 | 116 | 113.5 | 110.5 | 107 | 103 | 99 | 92 | |
| CDM 200-4-2B | 110 | 139.5 | 131.5 | 129 | 125.5 | 121 | 115.5 | 110 | 103.5 | 94 | |
| CDM 200-4 | 110 | 166 | 157.5 | 155.5 | 152.5 | 148 | 143.5 | 138 | 132.5 | 123.5 |

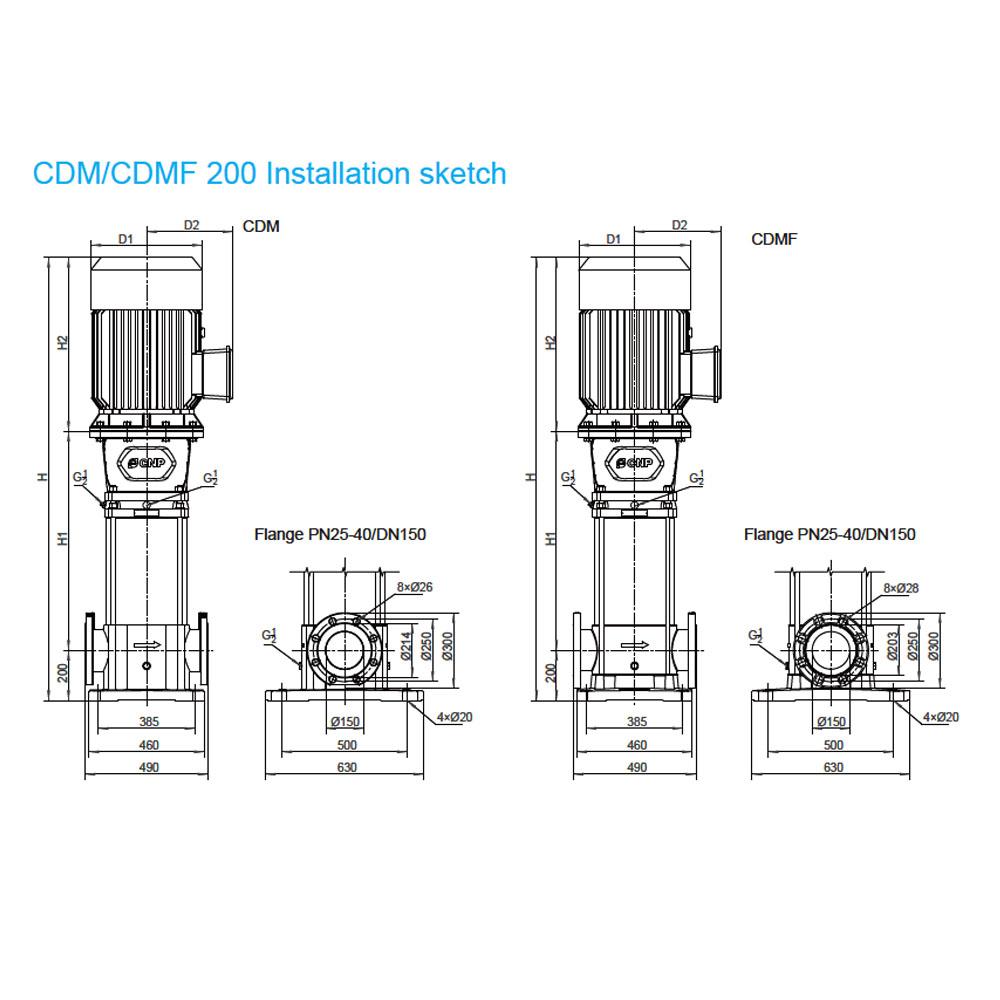

| Загвар | D1 | D2 | CDM | CDMF | H1 | H2 | H1 |
|---|---|---|---|---|---|---|---|
| CDM 200-1 | 400 | 310 | 437 | 407 | 1530 | 680 | 650 |
| CDM 200-2-2B | 400 | 310 | 481 | 451 | 1724 | 874 | 650 |
| CDM 200-2-2A | 460 | 340 | 536 | 506 | 1759 | 874 | 685 |
| CDM 200-2 | 540 | 370 | 631 | 601 | 1864 | 904 | 845 |
| CDM 200-3-2A | 580 | 410 | 784 | 754 | 2143 | 1098 | 845 |
| CDM 200-3-B | 580 | 410 | 784 | 754 | 2143 | 1098 | 845 |
| CDM 200-3 | 580 | 410 | 853 | 823 | 2193 | 1098 | 895 |
| CDM 200-4-2B | 580 | 410 | 866 | 836 | 2632 | 1292 | 1140 |
| CDM 200-4 | 645 | 550 | 1205 | 1175 | 2632 | 1292 | 1140 |
