CNP брэнд

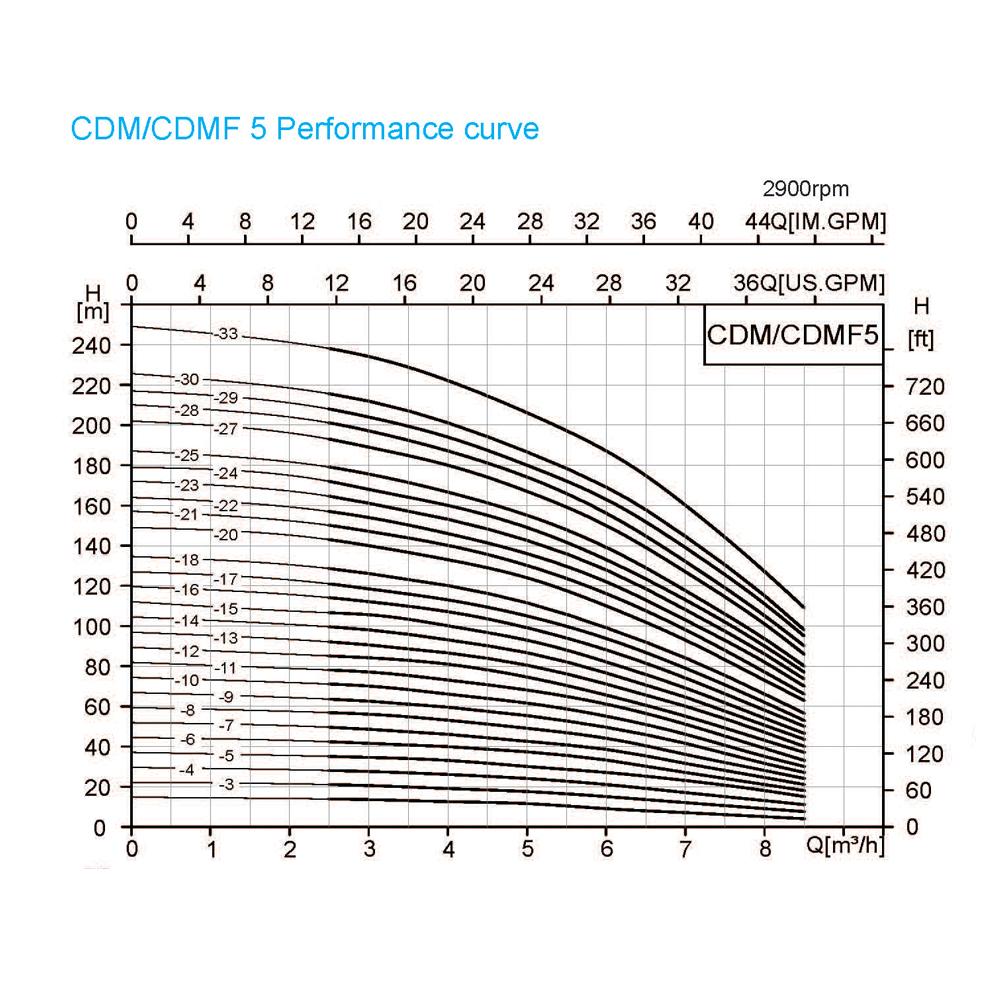

Загвар	KW	Q(m3/h)	0	2.5	3	4	5	6	7	8	8.5
CDM 5-4	0.55	H (m)	29.5	28	27.5	26	24	21	17	13	11
CDM 5-5	0.75		37	35	34.5	33	30	27	23	18	15
CDM 5-6	1.1		44.5	42	41.5	40	37	33	27	21	18
CDM 5-7	1.1		52	49.5	48.5	46	42.5	38.5	31.5	24.5	21
CDM 5-8	1.1		59	57	56	53	49	44	36	28	24
CDM 5-9	1.5		67	64	63	60	55	49.5	41.5	31.5	27
CDM 5-10	1.5		74.5	71	70	66	62	55	46	35	30
CDM 5-11	1.5		82	78	77	73	68	61	51	39	33
CDM 5-12	1.5		89.5	85	84	81	74.5	66	55	43	37
CDM 5-13	2.2		97	92	91	87	80	71	60	47	40
CDM 5-14	2.2		104	100	98	93	87	77	65	51	43.5
CDM 5-15	2.2		112	107	106	100	93	82	69	54	46.5
CDM 5-16	2.2		119	114	112	107	99	88	74	58	50
CDM 5-17	3		127	121	118.5	113	105	94	79	62	53
CDM 5-18	3		134	128	126	120	111	99	84	66	56
CDM 5-20	3		149	143	140	133	124	110	93	73	63

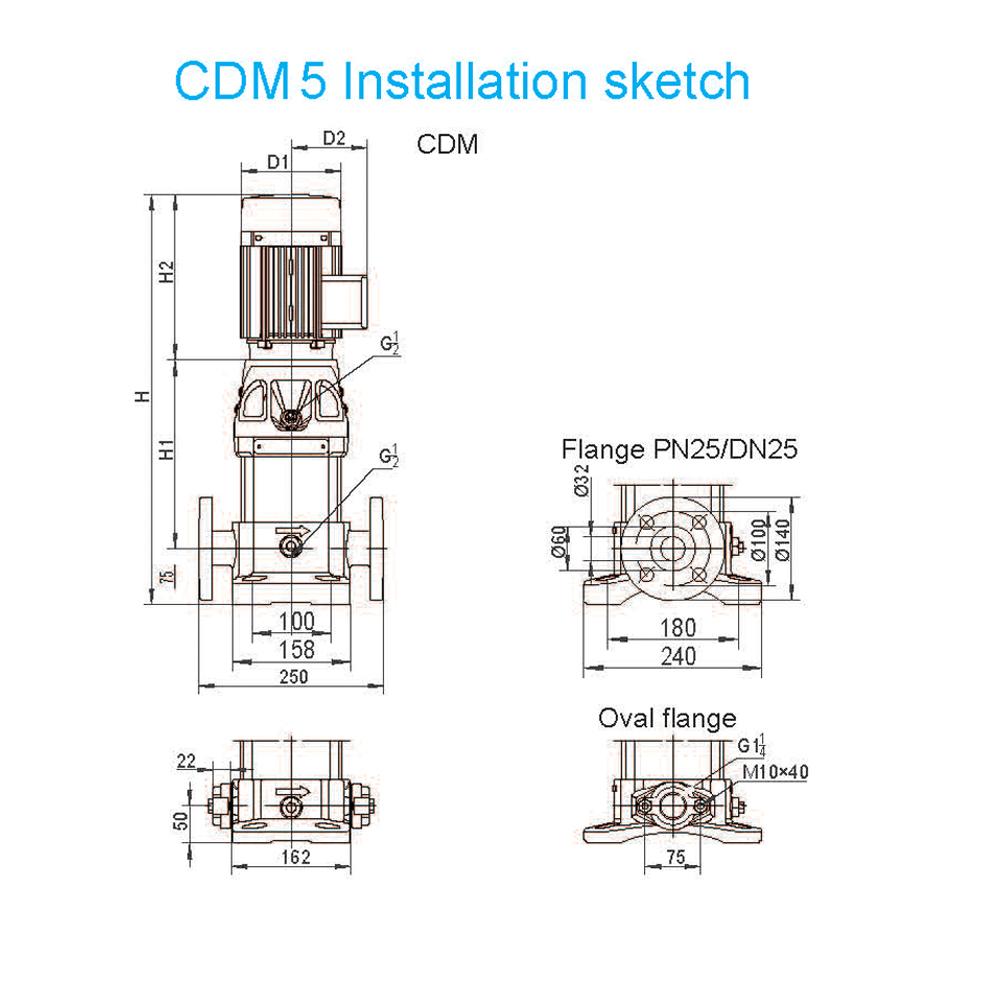

Загвар	D1	D2	CDM	CDMF	H(Flange/Oth)	H1	H2
CDM 5-4	148	117	27	22	545/520	255	215
CDM 5-5	170	142	30	25	612/587	292	245
CDM 5-6	170	142	32	27	639/614	319	245
CDM 5-7	170	142	32	27	666/641	346	245
CDM 5-8	170	142	33	28	693/668	373	245
CDM 5-9	190	155	38	33	775/750	410	290
CDM 5-10	190	155	39	34	802/777	437	290
CDM 5-11	190	155	39	34	829/804	464	290
CDM 5-12	190	155	42	37	856/831	491	290
CDM 5-13	190	155	42	37	883/858	518	290
CDM 5-14	190	155	43	38	910/885	545	290
CDM 5-15	190	155	43	38	937/912	572	290
CDM 5-16	190	155	44	39	964/939	599	290
CDM 5-17	197	165	55	50	1056/1030	636	345
CDM 5-18	197	165	55	50	1083/1058	663	345
CDM 5-20	197	165	56	51	1137/1112	717	345
