WQ(I) DN200 загвар
CNP брэнд
Цахилгааны эх үүсвэр: 50Hz, 3x380V
Шингэний температур: ≤ 40°C
Шингэний pH утга: 4 – 10
Шингэний нягт: ≤ 1200 kg/m³
Хатуу ба шингэний харьцаа: ≤ 2%

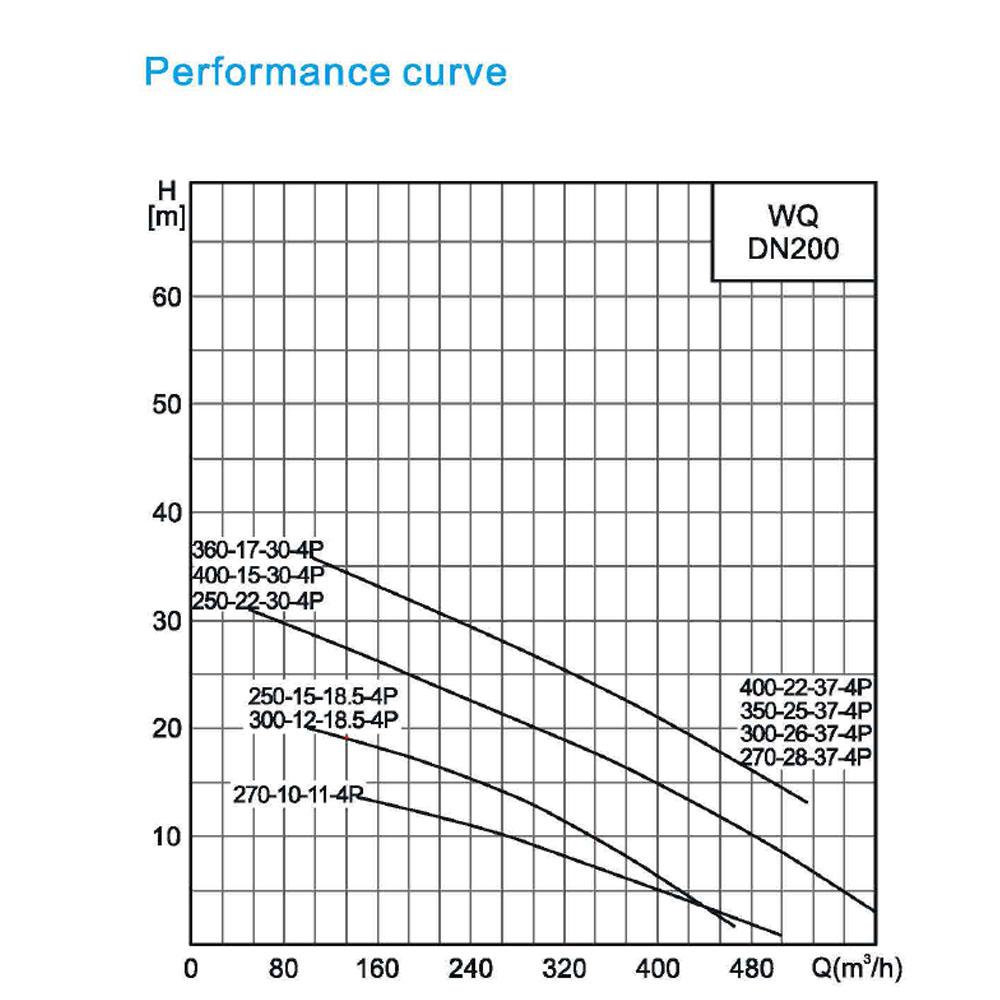

| Загвар | Диаметр мм | Q(m3/h) | H m | Хурд rpm | Чадал KW | Хүчдэл V | Гүйдэл A | Solid мм |
|---|---|---|---|---|---|---|---|---|
| 200WQ360-17-30-4(I) | 200 | 360 | 17 | 1450 | 30 | 380 | 57.4 | 65 |
| 200WQ400-15-30-4(I) | 200 | 400 | 15 | 1450 | 30 | 380 | 57.4 | 60 |
| 200WQ250-22-30-4(I) | 200 | 250 | 22 | 1450 | 30 | 380 | 57.4 | 60 |
| 200WQ250-15-18.5-4(I) | 200 | 250 | 15 | 1460 | 18.5 | 380 | 36.9 | 35 |
| 200WQ300-12-18.5-4(I) | 200 | 300 | 12 | 1460 | 18.5 | 380 | 36.9 | 63 |
| 200WQ270-10-11-4(I) | 200 | 270 | 10 | 1440 | 11 | 380 | 22.9 | 50 |
| 200WQ400-22-37-4(I) | 200 | 400 | 22 | 1470 | 37 | 380 | 71.9 | 65 |
| 200WQ350-25-37-4(I) | 200 | 350 | 25 | 1470 | 37 | 380 | 71.9 | 60 |
| 200WQ300-26-37-4(I) | 200 | 300 | 26 | 1470 | 37 | 380 | 71.9 | 50 |
| 200WQ270-28-37-4(I) | 200 | 270 | 28 | 1470 | 37 | 380 | 71.9 | 50 |

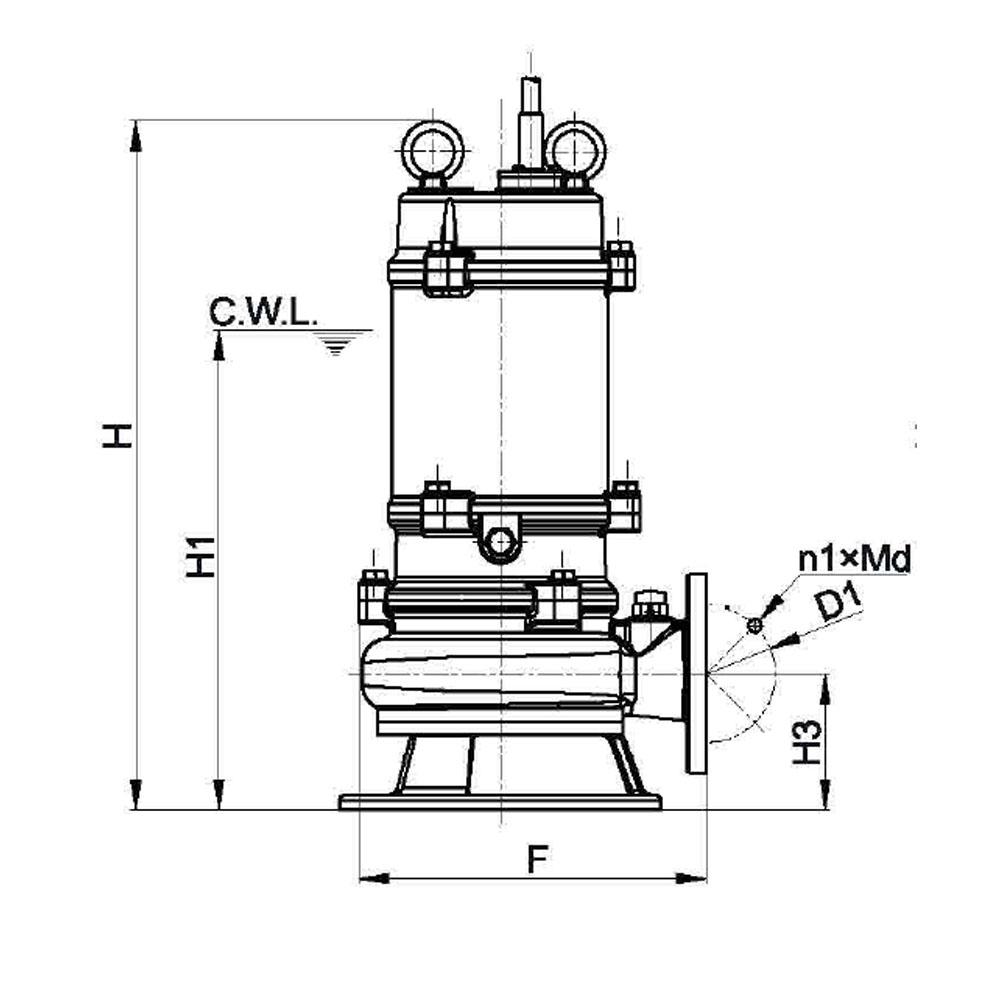

| Загвар | Жин кг | H | H1 | H2 | F | H3 |
|---|---|---|---|---|---|---|
| 200WQ360-17-30-4(I) | 565 | 1513 | 1200 | 673 | 620 | 463 |
| 200WQ400-15-30-4(I) | 565 | 1513 | 1200 | 673 | 620 | 463 |
| 200WQ250-22-30-4(I) | 565 | 1513 | 1200 | 673 | 620 | 463 |
| 200WQ250-15-18.5-4(I) | 310 | 1281 | 880 | 530 | 575 | 335.5 |
| 200WQ300-12-18.5-4(I) | 310 | 1281 | 880 | 530 | 575 | 335.5 |
| 200WQ270-10-11-4(I) | 230 | 1113 | 760 | 530 | 568 | 335 |
| 200WQ400-22-37-4(I) | 580 | 1590 | 1200 | 673 | 813 | 463 |
| 200WQ350-25-37-4(I) | 580 | 1590 | 1200 | 673 | 813 | 463 |
| 200WQ300-26-37-4(I) | 580 | 1590 | 1200 | 673 | 813 | 463 |
| 200WQ270-28-37-4(I) | 580 | 1590 | 1200 | 673 | 813 | 463 |
